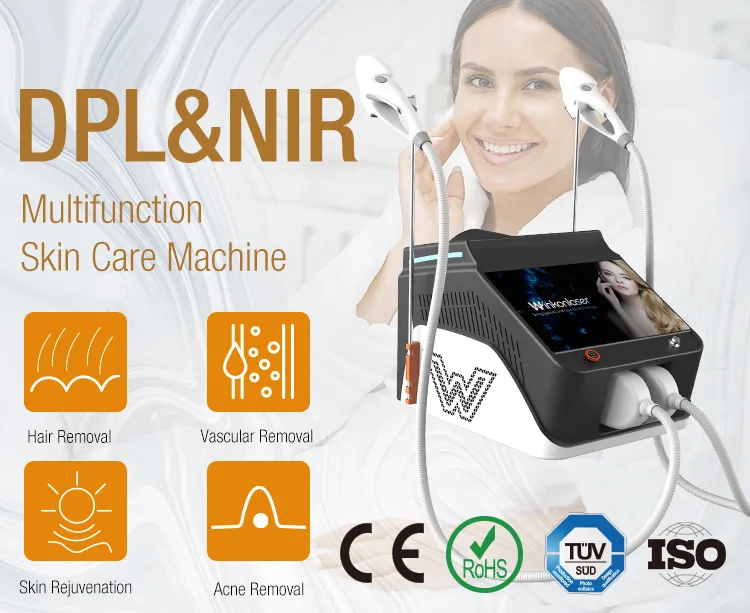

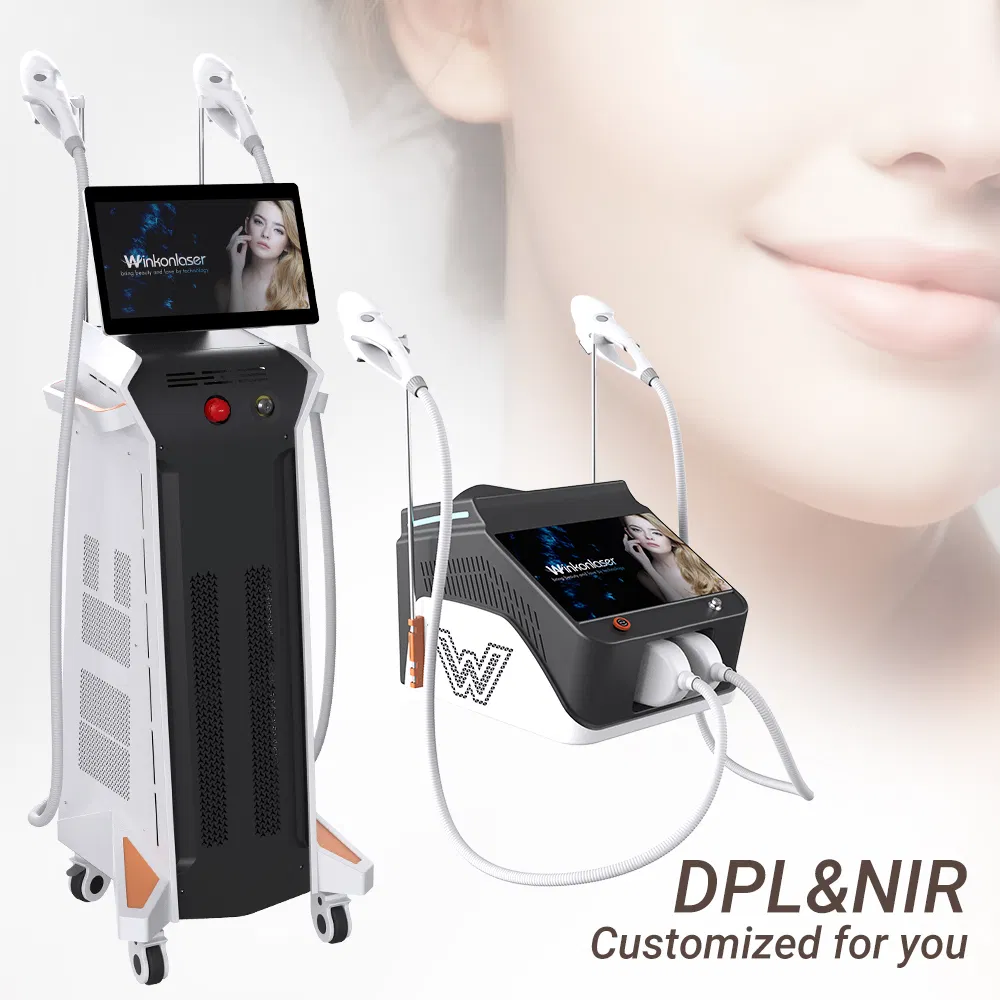

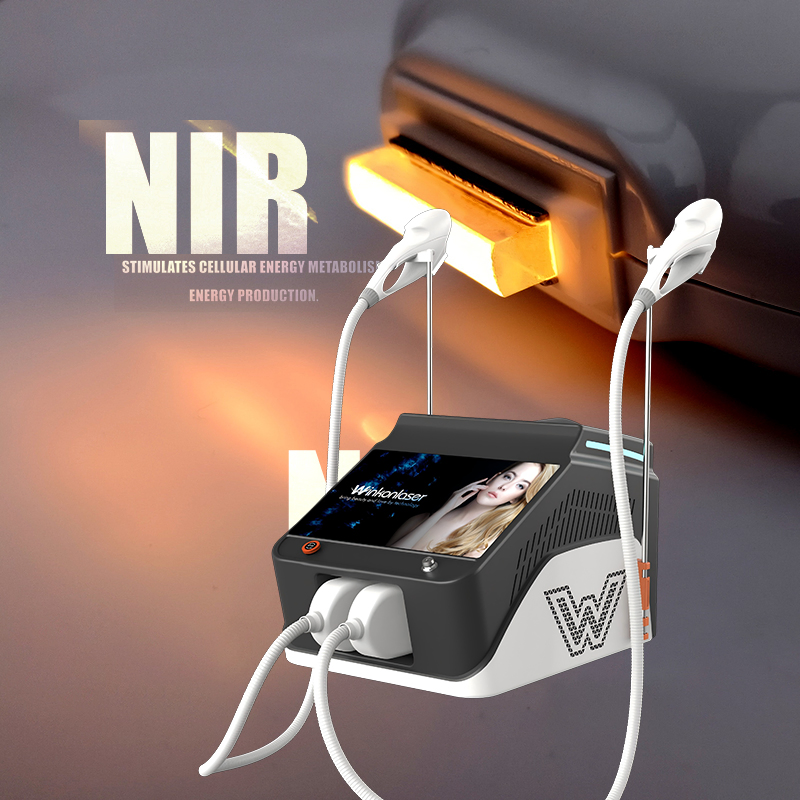

Portable IPL Hair Removal and Skin Rejuvenation Device for Acne Treatment
Product Description
Overview
Application
Salon, Home
Model
Dt10
Components
Main Unit + DPL Handpiece + NIR Handpiece + 6 Magnetic Filters
Wavelength
640-950nm / 590-950nm / 560-950nm / 530-950nm / 530-650&900-1200nm
Spot Size
8*40mm (Round Adjuster: 7mm Diameter)
DPL Energy Density
1-50j/cm²
DPL Power
1000W
Xenon Lamp
Imported from UK
Cooling System
Water Cooling & Air Cooling
Cooling Temperature
-5°C
Display
15.6 Inch LCD Smart Display
Max Output
2000W
NIR Energy
10-500W
DPL Lifespan
Approx 1000 Hours
Filter
Gemstone Crystals
Voltage
110V/240V AC
Product Description

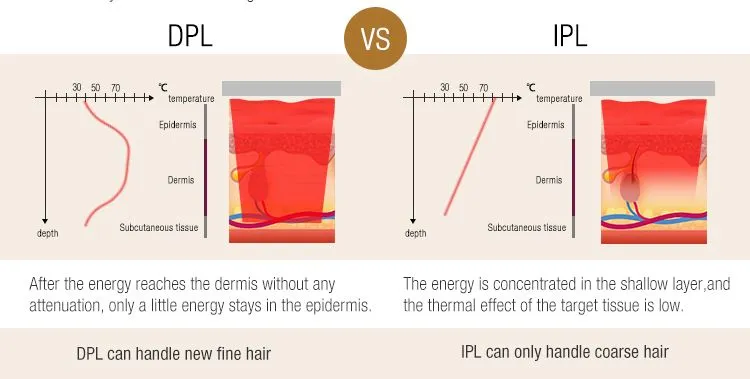

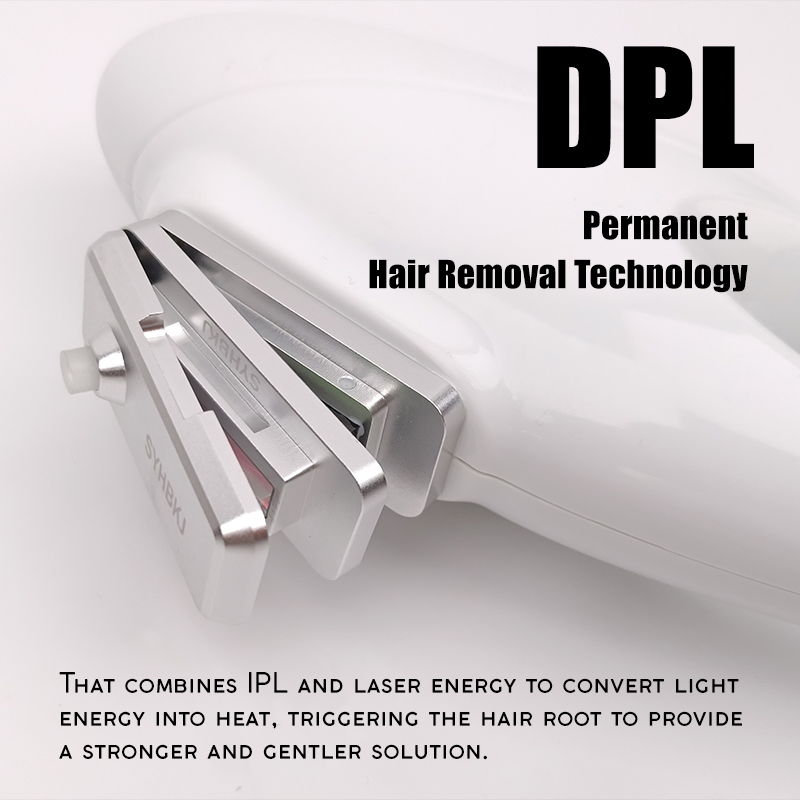

What is the New DPL Hair Removal Technology?
DPL (Delicate Pulsed Light) is the latest permanent hair removal technology that combines IPL and laser energy to convert light energy into heat, triggering the hair root to provide a stronger and gentler solution.
DPL features a pure target wavelength that gradually heats the dermis with short pulses at a high repetition rate to a temperature that effectively destroys the hair follicle and prevents re-growth of hair. It avoids damage to the surrounding tissues, resulting in a painless hair removal experience.
Introduction to DPL (Dynamic Pulsed Light) & NIR
The basic premise of Near Infrared (NIR) light therapy is that long wave light stimulates cellular energy metabolism and energy production. Infrared energy is invisible but penetrates deep into the body's soft tissues, muscles, joints, and bones. Three main light-sensitive molecules—hemoglobin, myoglobin, and cytochrome c oxidase—absorb light in the NIR range. Of these, cytochrome c oxidase is the most important mechanism of photobiomodulation (or low-intensity laser therapy, LLLT) and is associated with cellular energy (ATP) production.
Key Component Configurations
| Component Name | Specifications & Origin Details |
|---|---|
| Xenon Lamp | Imported from the UK for stable energy and long operational lifespan |
| Screen | 15.6 inch Ultra-High-Definition smart display interface |
| Cooling System | Thermo-Electric Cooling (TEC), water cooling, air cooling, sapphire contact cooling, and high-power dual-fan radiator |
| Water Pump | German-imported 12V 6A diaphragm silent water pump offering a 5.3L/min flow rate |
| Power Source | 1000W NIR energy source paired with a 1200W DPL power source integrated with overcurrent protection, real-time temperature monitoring, and voltage control systems |
| Water Tank | Transparent 10mm thick acrylic tank for easy visual level inspection |
| Frame Structure | Robust metal internal architecture built for protection and ease of maintenance |

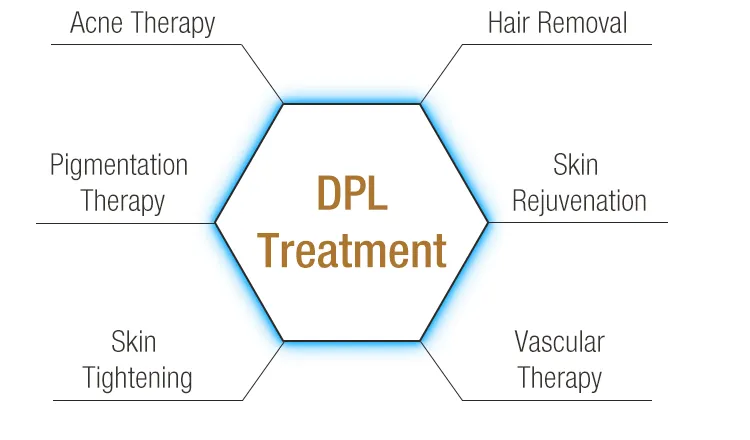

WHAT PROBLEMS CAN DPL SOLVE?
Dynamic Pulsed Light & NIR Skin Tightening

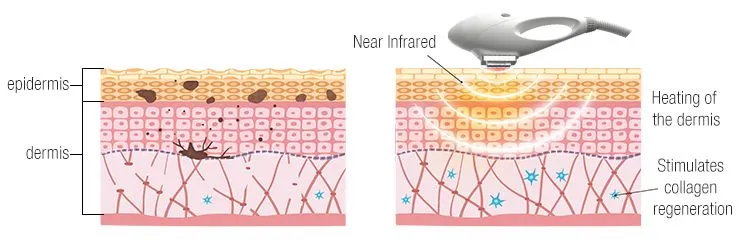

NIR skin tightening rejuvenates sagging, aging skin to look firmer and more youthful. It naturally boosts collagen production, offering effective results without the risks and costs associated with invasive plastic surgery or Botox injections.

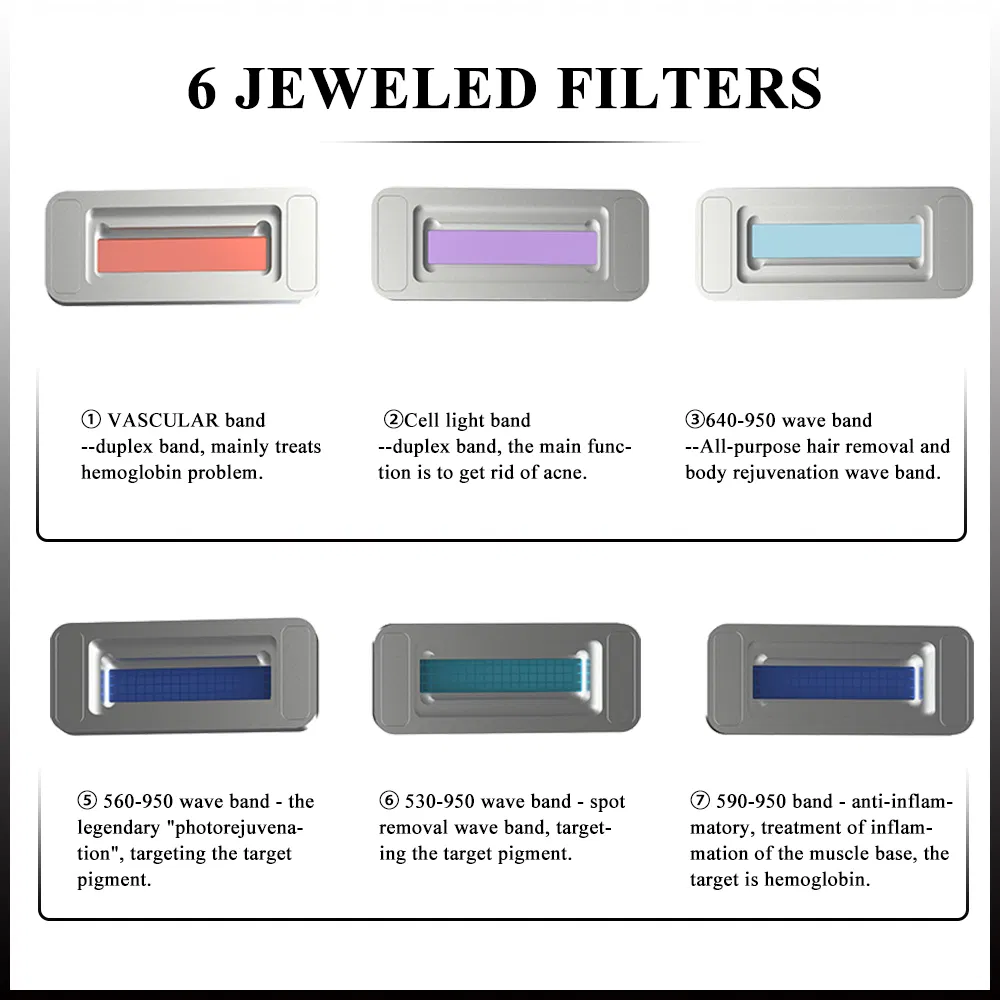

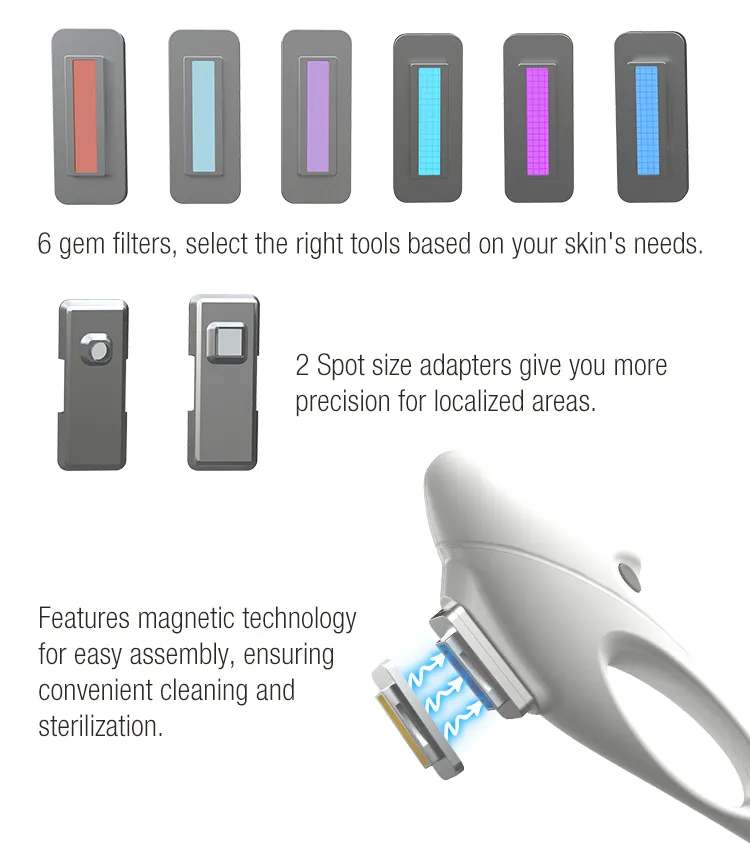

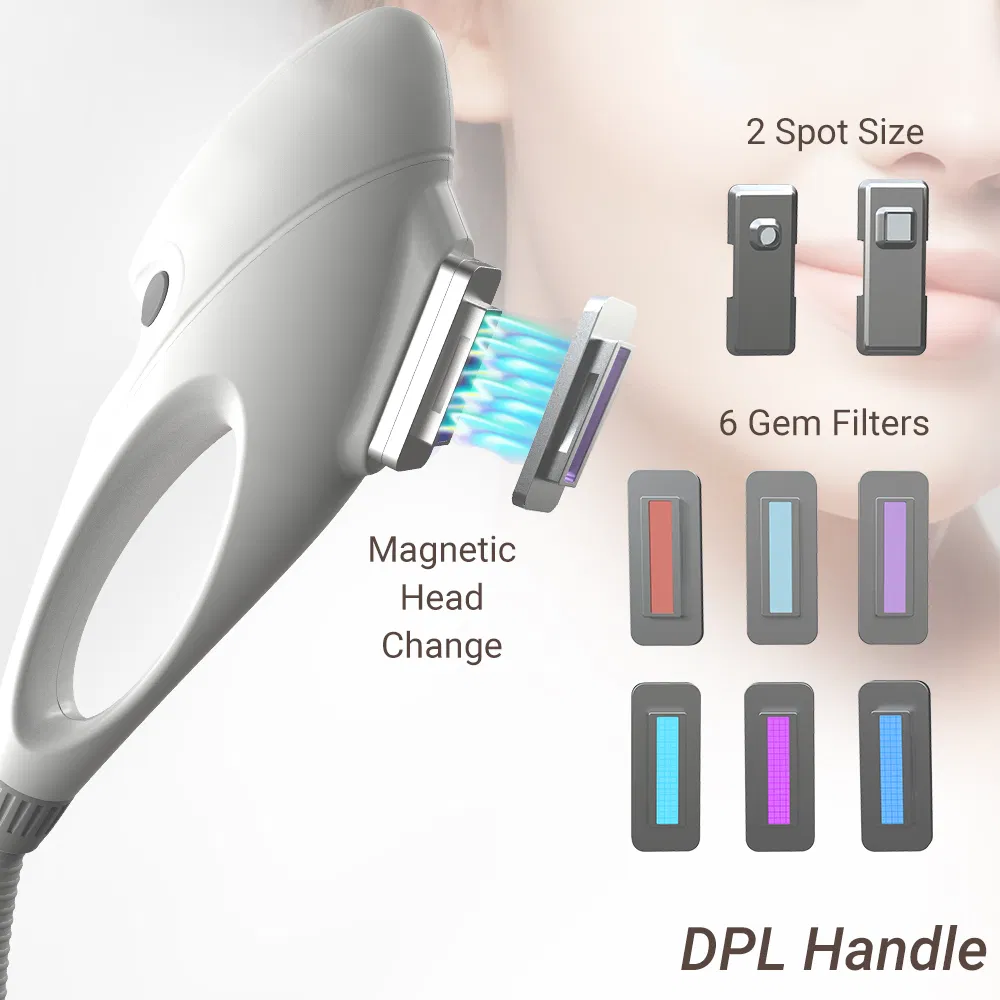

Equipped with 6 Jeweled Filters & 2 Spot Adapters
Filters can be selected according to specific skin problems for localized operation. Features advanced magnetic suction technology, making them easy to disassemble, clean, disinfect, and exchange safely and reliably.
Key Features & Applications of Wavelength Bands
1
Vascular Band: Duplex band mainly engineered to treat surface hemoglobin problems.
2
Cell Light Band: Duplex band targeted primarily at acne removal treatments.
3

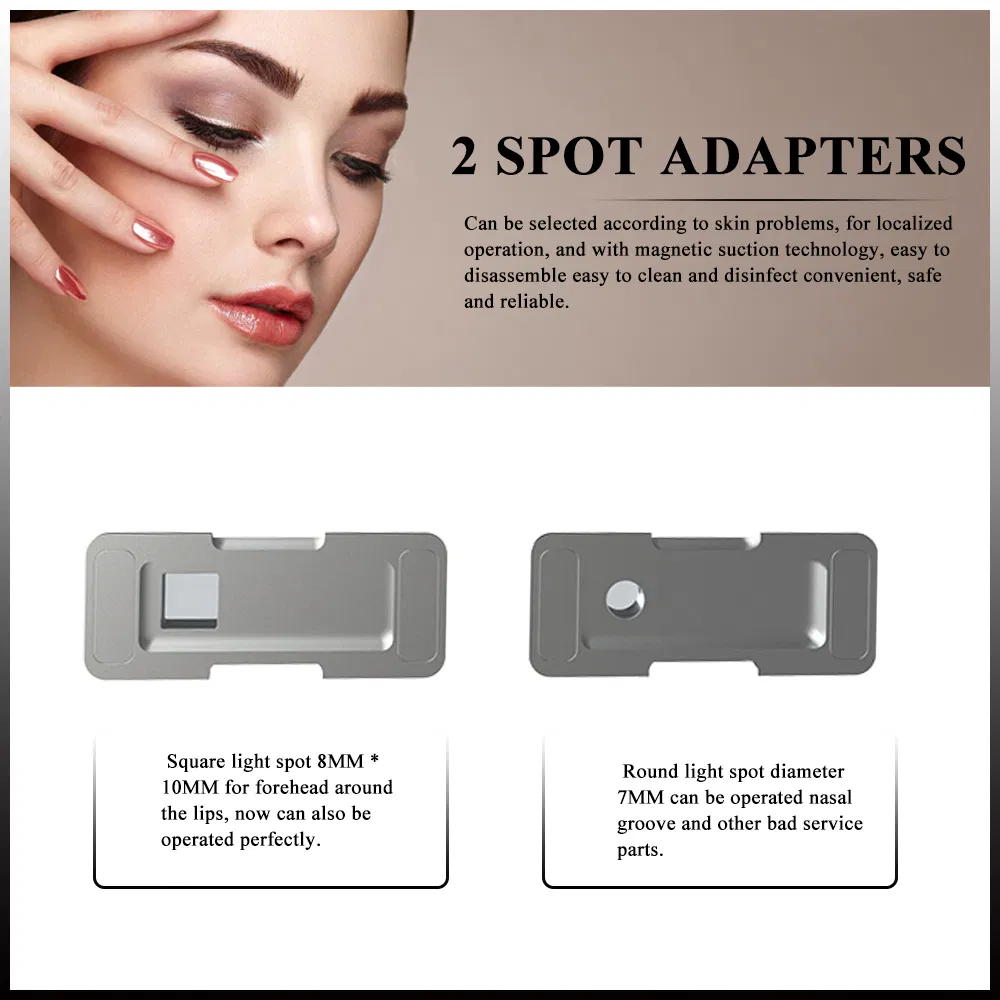

Square Light Spot (8mm*10mm): Perfect for detailed work on zones like the forehead and around the lips.
4
640-950nm Wave Band: All-purpose permanent hair removal and full-body skin rejuvenation band.
5
560-950nm Wave Band: Standard photorejuvenation band targeting targeted pigments.
6
530-950nm Wave Band: Specialized spot and pigmentation removal wavelength.
7
590-950nm Wave Band: Anti-inflammatory band treating muscle base inflammation by targeting hemoglobin.
8
Round Light Spot (7mm Diameter): Easily access and treat tricky areas like the nasal grooves.

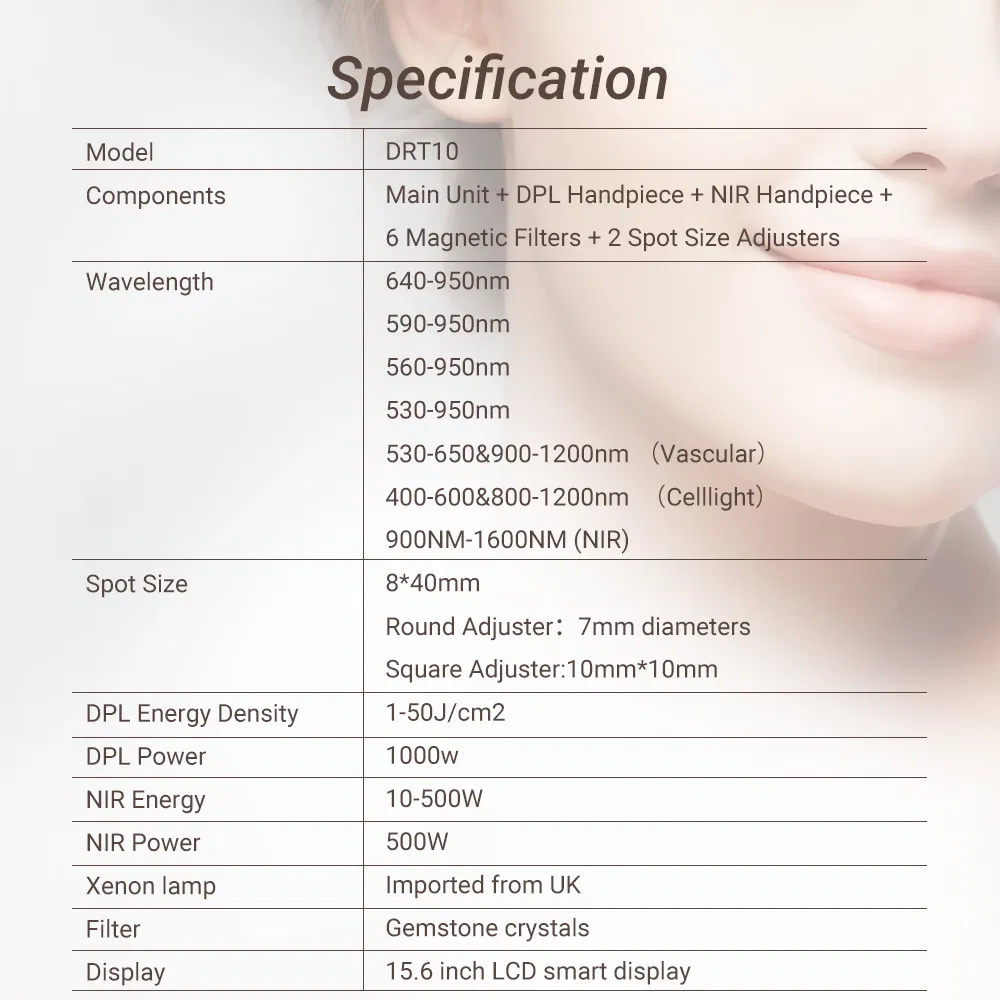

Technical Specifications Chart
| Specification Param | Detail Config 1 | Specification Param | Detail Config 2 |
|---|---|---|---|
| Product Model | Dt10 / DR10 | Standard Spot Size | 8*40mm |
| Components Included | Main Unit + DPL Handpiece + NIR Handpiece + 6 Magnetic Filters + 2 Spot Size Adjusters | Spot Size Adjusters | Round: 7mm diameter Square: 10mm*10mm |
| Available Wavelengths | 640-950nm, 590-950nm, 560-950nm, 530-950nm | DPL Energy Density | 1-50J/cm² |
| Specialized Duplex Bands | 530-650 & 900-1200nm (Vascular) 400-600 & 800-1200nm (Celllight) 900-1600nm (NIR) |
DPL Power | 1000W |
| DPL Lifespan | Approx 1000 hours | NIR Energy Range | 10-500W |
| NIR Total Power | 500W | Xenon Lamp Source | UK Imported |
| Filter System | Gemstone crystals | Integrated Cooling | Water Cooling & Air Cooling |
| Min Cooling Temp | -5°C | LCD Display | 15.6 inch smart display |
| Max Output Power | 2000W | Voltage Rating | 110V/240V AC |
Frequently Asked Questions (FAQ)
How does Delicate Pulsed Light (DPL) technology achieve painless hair removal?
DPL utilizes pure target wavelengths to gradually heat the dermis using rapid, short pulses. This processes heat accumulation in the hair follicle to destroy it, preventing regrowth, while safeguarding surrounding tissues to minimize discomfort.
What is NIR skin tightening and what benefits does it offer?
NIR uses Near Infrared light (900nm-1600nm) to target soft tissues and trigger cellular energy (ATP) production. This naturally stimulates collagen generation, helping to firm sagging skin and smooth out fine lines without invasive surgical procedures.
Why does the system include 6 different jeweled filters and 2 spot adjusters?
The filters separate specific wavelengths to address varied skin issues (vascular lesions, acne, hyperpigmentation). The spot adjusters (7mm round and 10mm*10mm square) modify treatment area sizes, allowing operators to safely treat intricate curves like the lips and nasal grooves.
What cooling technologies are built into the machine to keep treatments safe?
The system integrates multi-stage cooling including Thermo-Electric Cooling (TEC), air cooling, water cooling via a German-imported silent water pump, and contact sapphire cooling. It maintains a cooling temperature down to -5°C to protect skin surfaces during high-energy procedures.
What is the lifespan of the DPL handpiece?
The DPL handpiece is designed with an imported UK xenon lamp, offering a prolonged operational lifespan of approximately 1000 hours before replacement is required.
Can the device operate on multiple voltage standards globally?
Yes, the machine features dual-voltage compatibility, working efficiently on 110V/240V AC systems, making it adaptable for professional aesthetic centers worldwide.
