-25c Sapphire Cooling Dpl IPL Device for Non-Surgical Face Lifting
Product Description
- Overview
- Product Description
- Product Parameters
Basic Info
Model NO.
GMS Portable IPL Faery
Application
Salon, Home
Portable
Portable
Product Name
Professional IPL Machine
Technology
1000W Permanent Hair Removal
Function
Dpl Skin Rejuvenation System
Wavelength Options
480-1200nm / 530-1200nm / 640-1200nm
Laser Power Supply
1000W High Performance
Working Modes
IPL (Standard), Multi-Pulse
Energy Fluence (IPL)
10-50 J/Cm² (Adjustable)
Energy Fluence
1-26 J/Cm² (High Frequency)
Frequency (Pulse)
1-10 Hz (Rapid Sliding Treatment)
Spot Size
15mm X 50mm
Skin Cooling Tech
Tec + Sapphire (-25°C to 0°C)
Internal Cooling
Water + Air Fans + Condenser
System Endurance
18 Hours Continuous Operation
Display
10.4 Inch TFT Touch Screen
Input Voltage
AC 110V/60Hz / AC 230V/50Hz
Transport Package
Aluminum Box
Specification
66*51*54.5cm
Production Capacity
500 Pieces/Month
Product Description

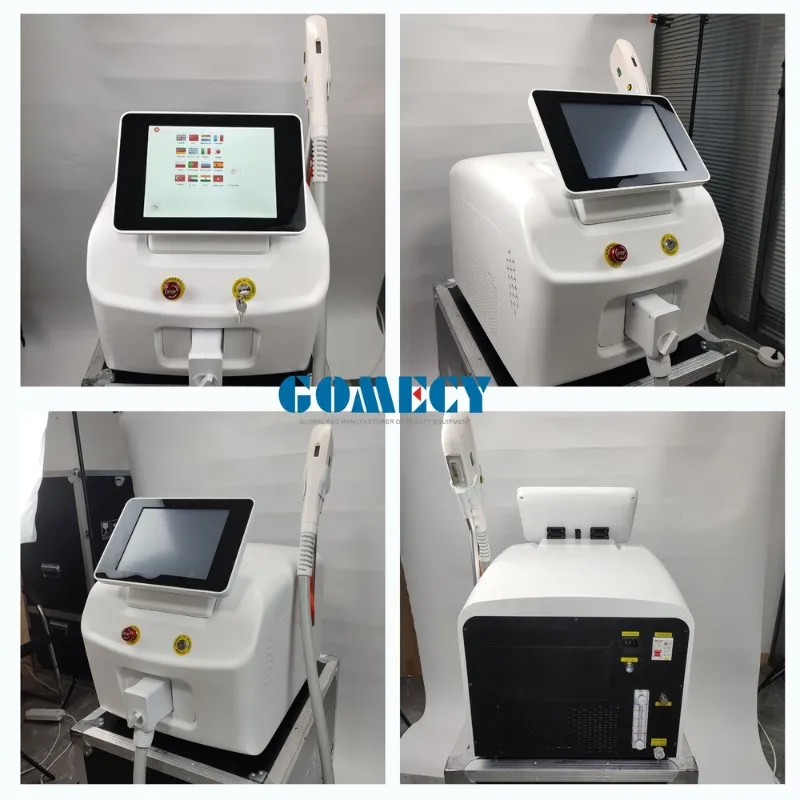

-25C Sapphire Cooling DPL IPL Device for Non-Surgical Face Lifting
This advanced IPL (Intense Pulsed Light) and Super Hair Removal workstation is a versatile, non-invasive medical aesthetic device designed to address the most common skin concerns. By integrating DPL (Dye Pulsed Light) technology and advanced spectrum filtering, it offers precise treatments for hair removal, pigmentation, vascular lesions, and skin rejuvenation. Engineered with a 1000W high-power supply and a -25°C Sapphire cooling system, this machine ensures high-efficiency results with maximum patient comfort, even during 18-hour continuous operation.
1. Core Technologies & Treatment Principles
A. Super Hair Removal Technology
Unlike traditional IPL which delivers high energy in a single, painful pulse, our mode uses "In-Motion" technology. It delivers a high repetition rate (up to 10Hz) of low-energy pulses. This gradually heats the hair follicle to the required temperature without damaging the surrounding tissue, making the treatment virtually painless and much faster.
B. DPL (Dye Pulsed Light) Precision
The system supports narrow-spectrum DPL technology, which concentrates light energy in the optimal absorption peaks for melanin and hemoglobin.
- Pigmentation: Shatters melanin in the epidermis (freckles, sun spots).
- Vascular: Coagulates superficial broken capillaries.
- Rejuvenation: Stimulates collagen fibers to improve skin texture and minimize pores.
C. Intelligent Multi-Pulse Delivery
Traditional IPL often suffers from "energy spikes" that can cause burns. Our system utilizes an Intelligent Square Pulse technology, ensuring uniform energy distribution across each pulse. This eliminates the risk of skin burns while maximizing the therapeutic effect on the lesion.
2. Why Choose This Professional System?
- Superior Cooling System (-25°C): Equipped with TEC + Sapphire contact cooling, the handpiece stays ice-cold throughout the session. This protects the epidermis and allows for higher energy settings on deep-seated targets without pain.
- Large Spot Size (15x50mm): The extra-large treatment window allows for rapid coverage of large areas like the back, legs, and chest, significantly reducing treatment time per patient.
- Industrial-Grade Duty Cycle: Featuring a high-efficiency Water + Air + Condenser cooling system, the machine supports 15-18 hours of continuous standby/working time, making it a reliable workhorse for high-traffic clinics.

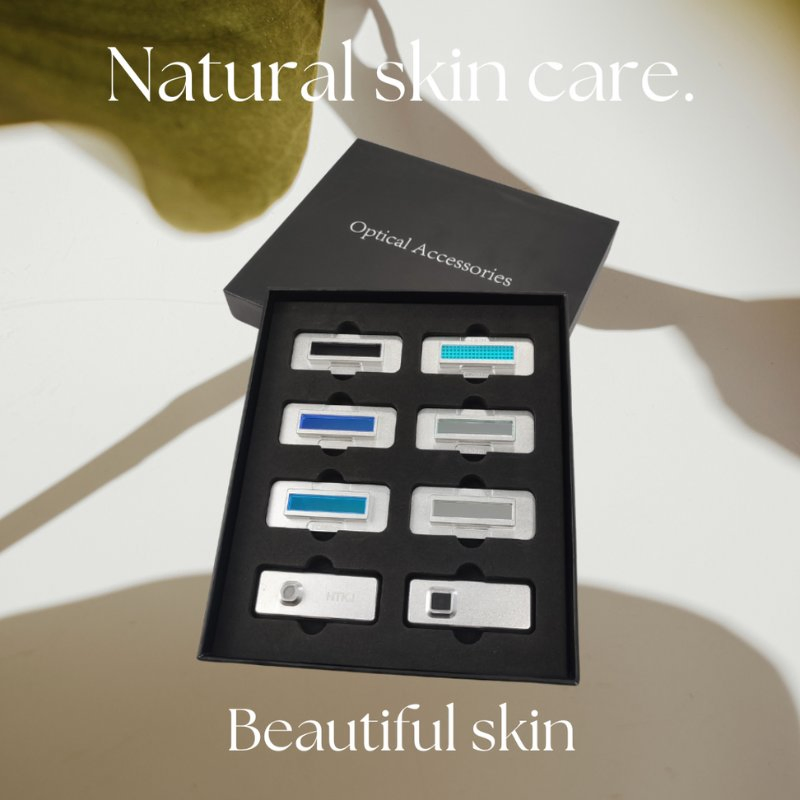

- Interchangeable Professional Filters: Includes 3 high-precision filters (480nm/530nm/640nm) to switch between vascular therapy, skin rejuvenation, and permanent hair removal in seconds.
- 10.4-inch Intelligent TFT Touch Screen: A user-friendly interface with pre-set clinical protocols for different skin types (Fitzpatrick I-VI) and treatment areas, ensuring safety for novice operators and precision for experts.
Product Parameters
| Specification | Professional Data Detail |
|---|---|
| Wavelength Options | 480-1200nm / 530-1200nm / 640-1200nm |
| Laser Power Supply | 1000W High Performance |
| Working Modes | IPL (Standard), Multi-Pulse |
| Energy Fluence (IPL) | 10-50 J/cm² (Adjustable) |
| Energy Fluence | 1-26 J/cm² (High Frequency) |
| Frequency (Pulse) | 1-10 Hz (Rapid Sliding Treatment) |
| Spot Size | 15mm x 50mm (Large Treatment Area) |
| Skin Cooling Tech | TEC + Sapphire (-25°C to 0°C) |
| Internal Cooling | Water Circulation + Air Fans + Condenser |
| System Endurance | 18 Hours Continuous Operation |
| Display | 10.4 inch TFT Color Touch Screen |
| Input Voltage | AC 110V/60Hz or AC 230V/50Hz Optional |
Clinical Applications
- Permanent Hair Removal: Effective for all hair colors and skin types, including tanned skin.
- Skin Rejuvenation: Improves fine lines, tightens skin, and reduces the appearance of large pores.
- Pigmentation Therapy: Treats freckles, lentigines, age spots, and sun-damaged skin.
- Vascular Therapy: Reduces redness, telangiectasia (spider veins), and rosacea.
- Acne Clearance: Targeted light energy destroys acne-causing bacteria and reduces sebaceous gland activity.
Safety & Maintenance Protocols
- Water Quality: Always use distilled or deionized water to prevent mineral buildup in the cooling system. Change water every 1-3 months.
- Skin Preparation: Ensure the treatment area is clean and a thin layer of cooling gel is applied for optimal light conduction.
- Filter Care: Clean the Sapphire crystal and filters with 75% medical alcohol after every use to maintain transparency and hygiene.
- Parameter Setting: Always perform a skin patch test when treating a new patient to find the optimal energy fluence.
Frequently Asked Questions
What is the advantage of DPL (Dye Pulsed Light) over traditional IPL?
DPL is a narrow-spectrum light technology that concentrates light energy precisely onto the absorption peaks of melanin and hemoglobin. This makes treatment for pigmentation and vascular lesions much more targeted, efficient, and safer compared to broad-spectrum traditional IPL.
Why is the -25°C Sapphire cooling system important?
The TEC and Sapphire contact cooling system keeps the treatment tip extremely cold (-25°C to 0°C). This protects the top layer of the skin (epidermis) from heat damage, reduces pain, and allows the operator to safely use higher energy levels for better treatment results.
How does the "In-Motion" SHR technology work?
Instead of blasting hair follicles with single, painful high-energy pulses, SHR uses In-Motion technology to deliver rapid low-energy pulses (up to 10Hz). This gradually heats the follicle to the target temperature, making the treatment virtually painless, safer, and much quicker to complete.
Can this machine run continuously all day in a clinic?
Yes, it features an industrial-grade cooling layout combining water circulation, air fans, and a high-performance condenser. This layout supports 15 to 18 hours of continuous standby and working time, making it ideal for busy clinics.
What maintenance is required for the internal system?
To keep the cooling system clean and free of mineral buildup, you must only use distilled or deionized water, and replace it every 1 to 3 months. Additionally, wipe down the Sapphire crystal and treatment filters with 75% medical alcohol after each session.
Are the treatment filters interchangeable?
Yes, the system comes with 3 interchangeable high-precision filters: 480nm (for vascular therapy/acne), 530nm (for skin rejuvenation/pigmentation), and 640nm (for permanent hair removal). You can swap them in seconds to target different treatments.
